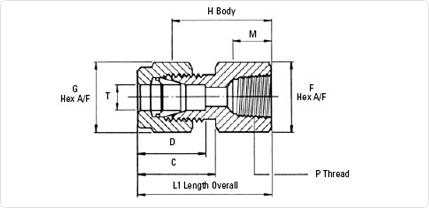

FEMALE CONNECTORS
|
|||||||||||||
| Part No. | T o/d | P | L1 Length |
M | C | D Body |
F | G Nut |
H Body | ||||
| 6mFC2 | 6 | 1/8 | 33 | 10 | 19 | 17 | 14 | 14 | 24 | ||||
| 6mFC4 | 6 | 1/4 | 37 | 14 | 19 | 17 | 19 | 14 | 28 | ||||
| 6mFC6 | 6 | 3/8 | 37 | 14 | 19 | 17 | 22 | 14 | 28 | ||||
| 6mFC8 | 6 | 1/2 | 45 | 22 | 19 | 17 | 27 | 14 | 36 | ||||
| 8mFC2 | 8 | 1/8 | 34 | 10 | 20 | 18 | 19 | 17 | 25 | ||||
| 8mFC4 | 8 | 1/4 | 38 | 14 | 20 | 18 | 19 | 17 | 29 | ||||
| 10mFC2 | 10 | 1/8 | 34.5 | 10 | 20.5 | 18 | 17 | 19 | 26 | ||||
| 10mFC4 | 10 | 1/4 | 38.5 | 14 | 20.5 | 18 | 19 | 19 | 30 | ||||
| 10mFC6 | 10 | 3/8 | 38.5 | 14 | 20.5 | 18 | 22 | 19 | 30 | ||||
| 10nFC8 | 10 | 1/2 | 46.5 | 22 | 20.5 | 18 | 27 | 19 | 38 | ||||
| 12mFC4 | 12 | 1/4 | 44 | 14 | 23 | 24 | 22 | 22 | 33 | ||||
| 12mFC6 | 12 | 3/8 | 44 | 14 | 23 | 24 | 22 | 22 | 33 | ||||
| 12mFC8 | 12 | 1/2 | 52 | 22 | 23 | 24 | 27 | 22 | 41 | ||||
| 16mFC8 | 16 | 1/2 | 55 | 22 | 24 | 26 | 27 | 27 | 43 | ||||
| 18mFC8 | 18 | 1/2 | 55 | 22 | 24 | 26 | 27 | 30 | 43 | ||||
| 18mFC12 | 18 | 3/4 | 55 | 22 | 24 | 26 | 36 | 30 | 43 | ||||
| 25mFC12 | 25 | 3/4 | 64.5 | 22 | 81 | 46 | 46 | 31 | 48 | ||||
| 25mFC16 | 25 | 1 | 66.5 | 24 | 31 | 36 | 41 | 41 | 50 | ||||
|
|||||||||||||
| Part No. | T o/d | P | L Length |
M | C | D | F | G Nut |
H Body | ||||
| 2FC2 | 1/8 | 1/8 | 1.16 | .39 | .63 | .53 | 9/16 | 7/16 | .88 | ||||
| 2FC4 | 1/8 | 1/4 | 1.34 | .59 | .63 | .53 | 3/4 | 7/16 | 1.06 | ||||
| 3FC2 | 3/16 | 1/8 | 1.17 | .59 | .63 | .54 | 9/16 | 9/16 | .91 | ||||
| 4FC2 | 1/4 | 1/8 | 1.23 | .39 | .70 | .60 | 9/16 | 9/16 | .94 | ||||
| 4FC4 | 1/4 | 1/4 | 1.41 | .39 | .70 | .60 | 3/4 | 9/16 | 1.12 | ||||
| 4FC6 | 1/4 | 3/8 | 1.48 | .59 | .70 | .60 | 7/8 | 9/16 | 1.19 | ||||
| 4FC8 | 1/4 | 1/2 | 1.70 | .59 | .70 | .60 | 1-1/16 | 9/16 | 1.41 | ||||
| 5FC2 | 5/16 | 1/8 | 1.26 | .78 | .73 | .64 | 3/4 | 5/8 | .97 | ||||
| 5FC4 | 5/16 | 1/4 | 1.45 | .39 | .73 | .64 | 3/4 | 5/8 | 1.16 | ||||
| 6FC2 | 3/8 | 1/8 | 1.29 | .59 | .76 | .66 | 5/8 | 11/16 | 1.00 | ||||
| 6FC4 | 3/8 | 1/4 | 1.48 | .39 | .76 | .66 | 3/4 | 11/16 | 1.19 | ||||
| 6FC6 | 3/8 | 3/8 | 1.54 | .59 | .76 | .66 | 7/8 | 11/16 | 1.25 | ||||
| 6FC8 | 3/8 | 1/2 | 1.73 | .59 | .76 | .66 | 1-1/16 | 11/16 | 1.44 | ||||
| 8FC4 | 1/2 | 1/4 | 1.65 | .78 | .86 | .90 | 13/16 | 7/8 | 1.25 | ||||
| 8FC6 | 1/2 | 3/8 | 1.65 | .59 | .86 | .90 | 7/8 | 7/8 | 1.25 | ||||
| 8FC8 | 1/2 | 1/2 | 1.84 | .78 | .86 | .90 | 1-1/16 | 7/8 | 1.44 | ||||
| 10FC6 | 5/8 | 3/8 | 1.65 | .59 | .86 | .96 | 15/16 | 1 | 1.25 | ||||
| 10FC8 | 5/8 | 1/2 | 1.84 | .78 | .86 | .96 | 1-1/16 | 1 | 1.44 | ||||
| 12FC8 | 3/4 | 1/2 | 1.84 | .78 | .86 | .96 | 1-1/16 | 1-1/8 | 1.44 | ||||
| 12FC12 | 3/4 | 3/4 | 1.90 | .81 | .86 | .96 | 1-5/16 | 1-1/8 | 1.50 | ||||
| 16FC12 | 1 | 3/4 | 2.10 | .81 | 1.04 | 1.23 | 1-3/8 | 1-1/2 | 1.62 | ||||
| 16FC16 | 1 | 1 | 2.45 | 1.00 | 1.04 | 1.23 | 1-5/8 | 1-1/2 | 1.97 | ||||
