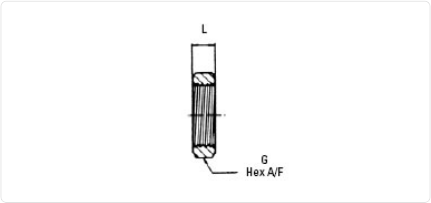

LOCK NUTS
|
|||||||||||||
| Part No. | G Nut | L | |||||||||||
| 6mLN | 17 | 6 | |||||||||||
| 8mLN | 17 | 6 | |||||||||||
| 10mLN | 19 | 8 | |||||||||||
| 12mLN | 24 | 8 | |||||||||||
| 16mLN | 27 | 9 | |||||||||||
| 18mLN | 30 | 9 | |||||||||||
| 25mLN | 41 | 10 | |||||||||||
|
|||||||||||||
| Part No. | G Nut | L | |||||||||||
| 2LN | .51 | .23 | |||||||||||
| 3LN | .55 | .23 | |||||||||||
| 4LN | .67 | .23 | |||||||||||
| 5LN | .67 | .23 | |||||||||||
| 6LN | .75 | .31 | |||||||||||
| 8LN | .94 | .31 | |||||||||||
| 10LN | 1.06 | .35 | |||||||||||
| 12LN | 1.18 | .35 | |||||||||||
| 16LN | 1.61 | .39 | |||||||||||
