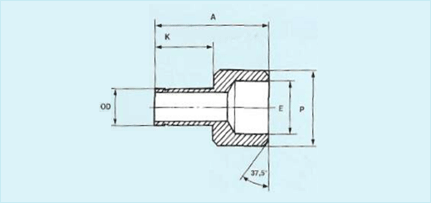

Buttweld Tube Adaptor

pic1
Part No. OD (inches) P Pipe A K E MWP (PSIG) Stainless Steel
4BWTA 1/4" 0,540" 30 16 6 4400
6BWTA 3/8" 0,540" 32 17,5 6 5600
8BWTA 1/2" 0,840" 42 22,5 14 4400
12BWTA 3/4" 1,050" 45 25 17 4400

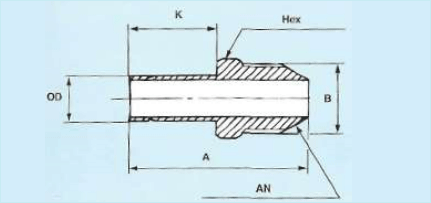

Male Tube Adaptor (37° flare) MTA-37

pic2
Part No. 0D Tube Size AN A UNF Thread sizeB Hex K MWP (PSIG) Stainless Steel
2MTA-37 1/8" 1/8" 30 5/16"-24 11 14 8200
3MTA-37 3/16" 3/16" 32 3/8"-24 11 14 8200
4MTA"-37 1/4" 1/4" 36 7/16"-20 13 16 8200
5MTA"-37 5/16" 5/16" 37 1/2"-20 14 17 5100
6MTA"-37 3/8" 3/8" 38 9/16"-18 17 17,5 5600
8MTA"-37 1/2" 1/2" 47 3/4"-16 22 22,5 4400
10MTA"-37 5/8" 5/8" 52 7/8"-14 27 25 5100
12MTA"-37 3/4" 3/4" 56 1-1/6"-12 27 25 3200
16MTA"-37 1" 1" 64 1-5/16M2 36 35 4400
