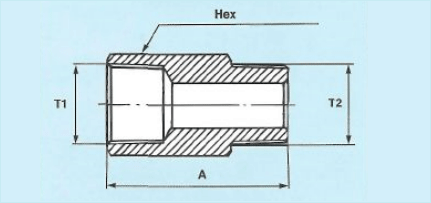

NPT Female/Male Adaptors
| Part No. | T1 | Female | T2 male | Hex | A | MWP (PSIG) Stainless Steel |
| 2FMA 1 | 1/8 | 1/8" | 1/16" | 17 | 26 | 7600 |
| 2FMA 1 | 1/8" | 1/8" | 1/8" | 17 | 26 | 8900 |
| 4FMA 1 | 1/4 | 1/4" | 1/16" | 19 | 31 | 6000 |
| 4FMA 2 | 1/4" | 1/4" | 1/8" | 19 | 31 | 6000 |
| 4FMA 4 | 1/4" | 1/4" | 1/4" | 19 | 37 | 6000 |
| 6FMA 1 | 3/8 | 3/8" | 1/16" | 22 | 38 | 4600 |
| 6FMA 2 | 3/8" | 3/8" | 1/8" | 22 | 37 | 4600 |
| 6FMA 4 | 3/8" | 3/8" | 1/4" | 22 | 37 | 4600 |
| 6FMA 6 | 3/8" | 3/8" | 3/8" | 22 | 33 | 4600 |
| 8FMA 2 | 1/2 | 1/2" | 1/8" | 30 | 38 | 6200 |
| 8FMA 4 | 1/2" | 1/2" | 1/4" | 30 | 43 | 6200 |
| 8FMA 6 | 1/2" | 1/2" | 3/8" | 30 | 43 | 6200 |
| 8FMA 8 | 1/2" | 1/2" | 1/2" | 30 | 48 | 6200 |
| 12FMA 2 | 3/4 | 3/4" | 1/8" | 36 | 42 | 5500 |
| 12FMA 4 | 3/4" | 3/4" | 1/4" | 36 | 45 | 5500 |
| 12FMA 6 | 3/4" | 3/4" | 3/8" | 36 | 45 | 5500 |
| 12FMA 8 | 3/4" | 3/4" | 1/2" | 36 | 49 | 5500 |
| 12FMA 12 | 3/4" | 3/4" | 3/4" | 36 | 49 | 5500 |
| 16FMA 2 | 1" | 1" | 1/8" | 41 | 49 | 3900 |
| 16FMA 4 | 1" | 1" | 1/4" | 41 | 54 | 3900 |
| 16FMA 6 | 1" | 1" | 3/8" | 41 | 51 | 3900 |
| 16FMA 8 | 1" | 1" | 1/2" | 41 | 55 | 3900 |
| 16FMA 12 | 1" | 1" | 3/4" | 41 | 56 | 3900 |
| 16FMA 16 | 1" | 1" | 1" | 41 | 60 | 3900 |
| 20FMA16 | 1-1/4" | 1-1/4" | 1" | 50 | 63 | 3500 |
| 24FMA20 | 1-1/2" | 1-1/2" | 1-1/4" | 60 | 64 | 3200 |
| 32FMA24 | 2" | 2" | 1-1/2" | 73 | 63 | 2700 |

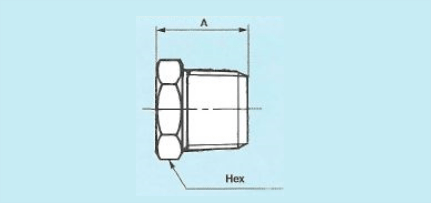

Hex Head Plug HP
| Part No. | Male NPT Pipe Thread | Hex | A |
| 1HP | 1/16" | 11 | 16 |
| 2HP | 1/8" | 11 | 16 |
| 4HP | 1/4" | 14 | 21 |
| 6HP | 3/8" | 19 | 24 |
| 8HP | 1/2" | 22 | 28 |
| 12HP | 3/4" | 27 | 31 |
| 16HP | 1" | 36 | 35 |
