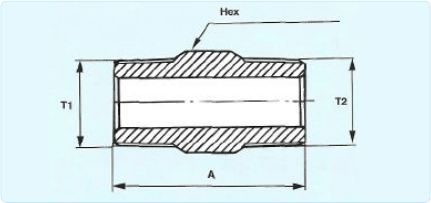

NPT Hex Nipples and Reducing Nipples MA
| Part No. | T1 | T2 | Hex | A | MWP (PSIG) stainless Steel |
| 1MA 1 | 1/16" | 1/16" | 11 | 27 | 12100 |
| 2MA 2 | 1/8" | 1/16" | 11 | 27 | 12100 |
| 2MA 2 | 1/8" | 1/8" | 11 | 27 | 9200 |
| 4MA 1 | 1/4" | I 1/16" | 14 | 32 | 12100 |
| 4MA 2 | 1/4" | 1/8" | 14 | 32 | 9200 |
| 4MA 4 | 1/4" | 1/4" | 14 | 37 | 10400 |
| 6MA 1 | 3/8" | 1/4" | 19 | 32 | 12100 |
| 6MA 2 | 3/8" | 1/8" | 19 | 32 | 9200 |
| 6MA 4 | 3/8" | 1/4" | 19 | 37 | 10400 |
| 6MA 6 | 3/8" | 3/8" | 19 | 37 | 8300 |
| 8MA 2 | 1/2" | 1/8" | 22 | 38 | 9200 |
| 8MA 4 | 1/2" | 1/4" | 22 | 43 | 10400 |
| 8MA 6 | 1/2" | 3/8" | 22 | 43 | 8300 |
| 8MA 8 | 1/2" | 1/2" | 22 | 48 | 7100 |
| 12MA 2 | 3/4" | 1/8" | 30 | 38 | 9200 |
| 12MA 4 | 3/4" | 1/4" | 30 | 45 | 10400 |
| 12MA 6 | 3/4" | 3/8" | 30 | 45 | 8300 |
| 12MA 8 | 3/4" | 1/2" | 30 | 50 | 7100 |
| 12MA 12 | 3/4" | 3/4" | 30 | 50 | 4600 |
| 16MA 2 | 1" | 1/8" | 36 | 45 | 9200 |
| 16MA 4 | 1" | 1/4" | 36 | 50 | 10400 |
| 16MA 6 | 1" | 3/8" | 36 | 50 | 8300 |
| 16MA 8 | 1" | 1/2" | 36 | 55 | 7100 |
| 16MA 12 | 1" | 3/4" | 36 | 55 | 4600 |
| 16MA 16 | 1" | 1" | 36 | 59 | 5100 |
| 20MA 16 | 1-1/4" | 1" | 50 | 62 | 4200 |
| 20MA 20 | 1-1/4" | 1-1/4" | 50 | 63 | 4200 |
| 24MA 24 | 1-1/2" | 1-1/2" | 50 | 66 | 3000 |
| 32MA 32 | 2" | 2" | 65 | 72 | 3000 |

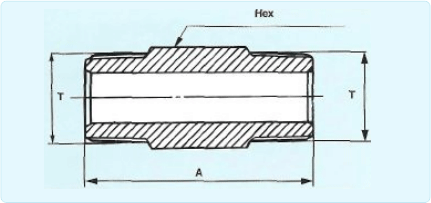

NPT Hex long nipples MAL
| Part No. | T | Hex | A | MWP (PSIG) Stainless Steel |
| 2MAL* | 1/8" | 11 | * | 9200 |
| 4MAL* | 1/4" | 14 | * | 10400 |
| 6MAL* | 3/8" | 19 | * | 8300 |
| 8MAL* | 1/2" | 22 | * | 7100 |
| 12MAL* | 3/4" | 30 | * | 4600 |
| 16MAL* | 1" | 36 | * | 5100 |
