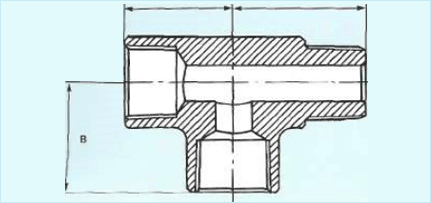

Street Tee ST
| Part No. | NPT Thread T1 | NPT Thread T2 | B mm | C mm | MWP(PSIG) Stainless Steel |
| 1 ST | 1/16" | 1/16" | 13 | 18 | 7900 |
| 2 ST | 1/8" | 1/8" | 17 | 20 | 6300 |
| 4 ST | 1/4" | 1/4" | 22 | 28 | 6700 |
| 6 ST | 3/8" | 3/8" | 26 | 31 | 6200 |
| 8 ST | 1/2" | 1/2" | 30 | 36,5 | 5000 |
| 12 ST | 3/4" | 3/4" | 34 | 41 | 4000 |
| 16 ST | 1'' | 1'' | 41 | 50 | 3900 |
| 20 ST | 1-1/4" | 1-1/4" | 43 | 61 | 3200 |
| 24 ST | 1-1/2" | 1-1/2" | 53 | 67 | 2500 |
| 32 ST | 2" | 2" | 61 | 76 | 2800 |

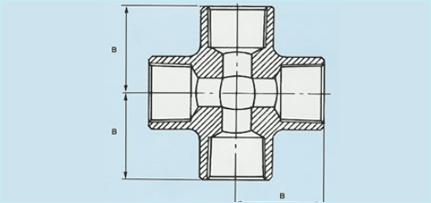

Female Cross FX
| Part No. | NPT Thread Male | B mm | MWP (PSIG) Stainless Steel |
| 1FX | 1/16" | 13 | 7600 |
| 2 FX | 1/8" | 17 | 6000 |
| 4FX | 1/4" | 22 | 6700 |
| 6FX | 3/8" | 26 | 6200 |
| 8FX | 1/2" | 30 | 5000 |
| 12 FX | 3/4" | 35 | 3400 |
| 16FX | 1'' | 41 | 3900 |
| 20FX | 1-1/4" | 43 | 3200 |
| 24FX | 1-1/2" | 53 | 2500 |
| 32FX | 2" | 61 | 2800 |

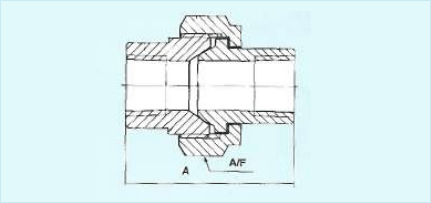

Screwed Union SCRW-U
| Part No. | NPT thread | A/F | A | MWP (PSIG) Stainless Steel |
| 8 SCRW-U | 1/2" | 41 | 59 | 3000 |
| 12 SCRW-U | 3/4" | 50 | 71 | 3000 |
| 16 SCRW-U | 1'' | 60 | 75 | 3000 |
