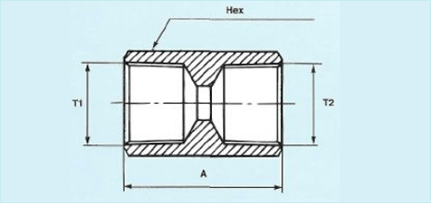

NPT Hex Couplings and Reducing Couplings FA
| Part No. | NPTT T1 | hread T2 | Hex | A | MWP (PSIG) stainless Steel |
| 1FA 1 | 1/16" | 1/16" | 11 | 20 | 8900 |
| 2FA 1 | 1/8" | 1/16" | 17 | 20 | 8900 |
| 2FA 2 | 1/8" | 1/8" | 17 | 20 | 8900 |
| 4FA 1 | 1/4" | 1/16" | 19 | 24 | 6000 |
| 4FA 2 | 1/4" | 1/8" | 19 | 24 | 6000 |
| 4FA 4 | 1/4" | 1/4" | 19 | 28 | 6000 |
| 6FA 1 | 3/8" | 1/16" | 22 | 24 | 4600 |
| 6FA 2 | 3/8" | 1/8" | 22 | 24 | 4600 |
| 6FA 4 | 3/8" | 1/4" | 22 | 28 | 4600 |
| 6FA 6 | 3/8" | 3/8" | 22 | 28 | 4600 |
| 8FA 2 | 1/2" | 1/8" | 30 | 32 | 6200 |
| 8FA 4 | 1/2" | 1/4" | 30 | 36 | 6200 |
| 8FA 6 | 1/2" | 3/8" | 30 | 36 | 6200 |
| 8FA 8 | 1/2" | 1/2" | 30 | 44 | 6200 |
| 12FA 2 | 3/4" | 1/8" | 36 | 32 | 5500 |
| 12FA 4 | 3/4" | 1/4" | 36 | 36 | 5500 |
| 12FA 6 | 3/4" | 3/8" | 36 | 36 | 5500 |
| 12FA 8 | 3/4" | 1/2" | 36 | 44 | 5500 |
| 12FA 12 | 3/4" | 3/4" | 36 | 44 | 5500 |
| 16FA 2 | 1" | 1/8" | 41 | 34 | 3900 |
| 16FA 4 | 1" | 1/4" | 41 | 38 | 3900 |
| 16FA 6 | 1" | 3/8" | 41 | 38 | 3900 |
| 16FA 8 | 1" | 1/2" | 41 | 46 | 3900 |
| 16FA 12 | 1" | 3/4" | 41 | 46 | 3900 |
| 16FA 16 | 1" | 1" | 41 | 48 | 3900 |
| 20FA16 | 1-1/4" | 1" | 55 | 49 | 3500 |
| 20FA 20 | 1-1/4" | 1-1/4" | 55 | 49 | 3500 |
| 24FA24 | 1-1/2" | 1-1/2" | 60 | 49 | 3200 |
| 32FA32 | 2" | 2" | 73 | 50 | 2700 |

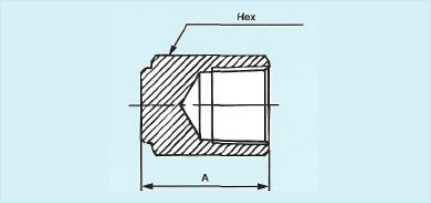

Pipe Cap PC
| Part No. | NPT Thread Female | Hex | A | MWP (PSIG) stainless steel |
| 1PC | 1/16" | 11 | 17 | 6000 |
| 2PC | 1/8" | 14 | 19 | 5600 |
| 4PC | 1/4" | 19 | 23 | 6000 |
| 6PC | 3/8" | 22 | 26 | 4600 |
| 8PC | 1/2" | 27 | 34 | 4400 |
| 12PC | 3/4" | 36 | 37 | 5500 |
| 16PC | 1" | 41 | 42 | 3900 |
