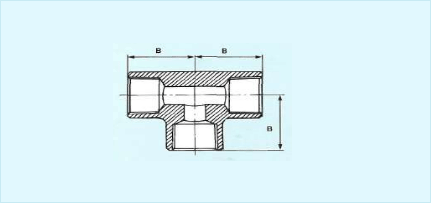

Female Tee FT

pic1
Part No. NPT Thread Female B mm MWP (PSIG) stainless Steel
1FT 1/16" 13 7600
2FT 1/8" 17 6000
4FT 1/4" 22 6700
6FT 3/8" 26 6800
8FT 1/2" 30 5000
12FT 3/4" 34 4000
16FT 1'' 41 3900
20FT 1-1/4" 43 3200
24FT 1-1/2" 53 2500
32FT 2" 61 2800

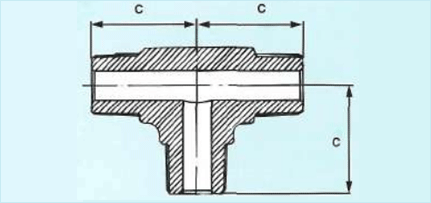

Male tee MT

pic2
Part No. NPT Thread Female B mm MWP (PSIG) stainless Steel
1MT 1/16" 18 10000
2MT 1/8" 20 10000
4MT 1/4" 28 8200
6MT 3/8" 31 7600
8MT 1/2" 37 7200
12MT 3/4" 40 6700
16MT 1'' 50 5200
20MT 1-1/4" 61 4300
24MT 1-1/2" 67 3700
32MT 2" 76 3600

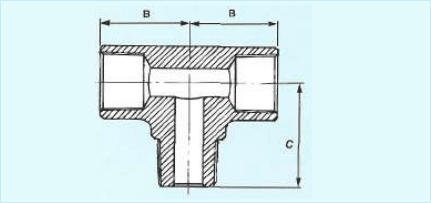

Male branch tee MBT

pic3
Part No. NPTT T1 hread T2 B mm C mm MWP (PSIG) Stainless Steel
1MBT 1/16" 1/16" 13 18 7900
2MBT 1/8" 1/8" 17 20 6300
4MBT 1/4" 1/4" 22 28 6700
6MBT 3/8" 3/8" 26 31 6700
8MBT 1/2" 1/2" 30 36,5 5000
12MBT 3/4" 3/4" 34 41 4000
16MBT 1'' 1'' 41 50 3900
20MBT 1-1/4" 1-1/4" 43 61 3200
24MBT 1-1/2" 1-1/2" 53 67 2500
32MBT 2" 2" 61 76 2800
