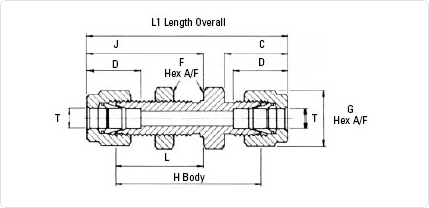

BULKHEAD UNIONS

pic1

METRIC RANGE

Dimensions in mm

Part No. T o/d L1 C D F G H J L Panel
Hole
Max
6mBHU 6 61 19 17 17 14 43 35 26 11.6 12
8mBHU 8 64 20 18 17 17 46 37.5 28.5 13.2 14
10mBHU 10 65 20.5 18 19 19 48 38 29.5 16.4 10
12mBHU 12 73 23 24 24 22 51 43 32 19.5 1.4
16mBHU 16 76.5 24 26 27 27 52.5 44.5 32.5 22.7 14
18mBHU 18 83 24 26 30 30 59 49.5 37.5 25.9 18
25mBHU 25 105 31 36 41 41 72 62 45.5 33.8 27

METRIC RANGE

Dimensions in mm

Part No. T o/d L1 C D F G
Nut
H J Body L Panel
Hole
Max
2BHU 1/8 2.1 .63 .53 1/2 7/16 1.57 1.25 .97 21/64 .40
4BHU 1/4 2.27 .70 .60 5/8 9/16 1.69 1.32 1.03 29/64 .40
5BHU 5/16 2.39 .73 .64 11/16 5/8 1.81 1.41 1.12 33/64 .50
6BHU 3/8 2.46 .76 .66 3/4 11/16 1.88 1.45 1.16 37/64 .40
8BHU 1/2 2.80 .86 .90 15/16 7/8 2.00 1.65 1.25 49.64 .50
10BHU 5/8 2.87 .86 .96 1 1 2.06 1.69 1.28 57/64 .50
12BHU 3/4 3.11 .86 .96 13/16 1-1/8 2.31 1.87 1.47 1.1/16 .67
16BHU 1 3.75 1.04 1.23 1-5/8 1-1/2 2.81 2.26 1.78 1-21/64 .88
