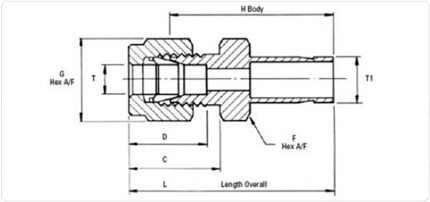

REDUCERS

pic1

METRIC RANGE

Dimensions in mm

Part No. T o/d T1 o/d L C D F G H
6m RED 4m 6 4 39 19 17 14 14 30
6m RED 4m 6 8 42 19 17 14 14 33
6m RED 10m 6 10 43 19 17 14 14 35
10m RED 6m 10 6 43.5 20.5 18 17 19 35
10m RED 12m 10 12 50.5 20.5 18 17 19 42
12m RED 10m 12 10 50 23 24 22 22 39

IMPERIAL RANGE

Dimensions in inches

Part No. T o/d T1 o/d L C D F G H
2RED4 1/8 1/4 1.42 .60 .50 7/16 7/16 1.16
4RED2 1/4 1/8 1.45 .70 .60 1/2 9/16 1.16
4RED6 1/2 3/8 1.60 .70 .60 1/2 9/16 1.31
4RED8 1/4 1/2 1.82 .70 .60 9/16 9/16 1.53
6RED4 3/8 1/4 1.63 .76 .66 5/8 11/16 1.34
6RED8 3/8 1/2 1.91 .76 .66 5/8 11/16 1.62
8RED6 1/2 3/8 1.48 .86 .90 13/16 7/8 1.44
