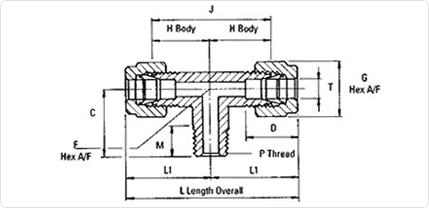

MALE BRANCH TEES

pic1

METRIC RANGE

Dimensions in mm

Part No. T o/d P L1 Length M C F G
Nut
H
Body
J L
6mTTM2 6 1/8 28.5 10 19 12 14 19.5 39 57
6mTTM4 6 1/4 28.5 15 26 12 14 19.5 39 57
6mTTM6 6 3/8 30.5 16 28.5 14 14 21.5 43 61
6mTTM8 6 1/2 32 20 32.5 19 14 23 46 64
8mTTM2 8 1/8 31 10 20 14 17 22 44 62
8mTTM4 8 1/4 31 15 27 14 17 22 44 62
8mTTM6 8 3/8 31.5 16 28.5 14 17 22.5 45 63
8mTTM8 8 1/2 33 20 32.5 19 17 24 48 66
10mTTM2 10 1/8 35 10 24 14 19 26.5 53 70
10mTTM4 10 1/4 33.5 15 28 19 19 25 50 67
10mTTM6 10 3/8 33.5 16 29 19 19 25 50 67
10mTTM8 10 1/2 33.5 20 32.5 19 19 25 50 67
12mTTM4 12 1/4 36 15 28 19 22 25 50 72
12mTTM6 12 3/8 36 16 29 19 22 25 50 72
12mTTM8 12 1/2 36 20 32.5 19 22 25 50 72
16mTTM8 16 1/2 39 20 34.5 24 27 27 54 78

IMPERIAL RANGE

Dimensions in inches

Part No. T o/d P L1 Length M C F G Nut H Body J L
2TTM2 1/8 1/8 .99 .38 .76 .47 7/16 .72 1.44 1.98
2TTM4 1/8 1/4 .99 .56 .94 .47 7/16 .72 1.44 1.98
3TTM2 3/16 1/8 1.01 .38 .76 .47 1/2 .75 1.50 2.02
4TTM2 1/4 1/8 1.07 .38 .76 .47 9/16 .78 1.56 2.14
4TTM4 1/4 1/4 1.07 .56 .94 .47 9/16 .78 1.56 2.14
4TTM6 1/4 3/8 1.13 .56 1.00 .55 9/16 .84 1.68 1.26
5TTM2 5/16 1/8 1.06 .38 .82 .55 5/8 .87 1.74 2.32
6TTM2 3/8 1/8 1.21 .38 .82 .55 11/16 .91 1.82 2.42
6TTM4 3/8 1/4 1.21 .56 1.00 .55 11/16 .91 1.82 2.42
6TTM6 3/8 3/8 1.21 .56 1.00 .55 11/16 .91 1.82 2.42
6TTM8 3/8 1/2 1.21 .75 1.26 .75 11/16 .91 1.82 2.42
8TTM4 1/2 1/4 1.38 .56 1.08 .75 7/8 .98 1.96 2.76
8TTM6 1/2 3/8 1.38 .56 1.08 .75 7/8 .98 1.96 2.76
8TTM8 1/2 1/2 1.38 .75 1.26 .75 7/8 .98 1.96 2.76
10TTM8 5/8 1/2 1.46 .75 1.38 .75 1 1.06 2.12 2.92
