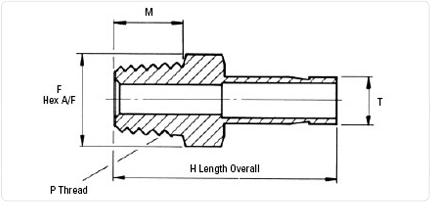

MALE ADAPTORS
METRIC RANGE |
Dimensions in mm |
|
| Part No. |
T o/d |
P |
M |
F |
H |
| 6mATPM2 |
6 |
1/8 |
10 |
14 |
32 |
| 6mATPM4 |
6 |
1/4 |
15 |
14 |
37 |
| 6mATPM6 |
6 |
3/8 |
16 |
19 |
38 |
| 6mATPM8 |
6 |
1/2 |
20 |
22 |
42 |
| 8mATPM2 |
8 |
1/8 |
10 |
12 |
33 |
| 8mATPM4 |
8 |
1/4 |
15 |
14 |
38 |
| 8mATPM6 |
8 |
3/8 |
16 |
19 |
39 |
| 8mATPM8 |
8 |
1/2 |
20 |
22 |
43 |
| 10mATPM2 |
10 |
1/8 |
10 |
12 |
34 |
| 10mATPM4 |
10 |
1/4 |
15 |
14 |
39 |
| 10mATPM6 |
10 |
3/8 |
16 |
19 |
40 |
| 10mATPM8 |
10 |
1/2 |
20 |
22 |
46 |
| 12mATPM4 |
12 |
1/4 |
15 |
14 |
44 |
| 12mATPM6 |
12 |
3/8 |
16 |
19 |
45 |
| 12mATPM8 |
12 |
1/2 |
20 |
22 |
51 |
| 16mATPM6 |
16 |
3/8 |
16 |
19 |
48 |
| 16mATPM8 |
16 |
1/2 |
20 |
22 |
52 |
| 16mATPM12 |
16 |
3/4 |
21 |
27 |
53 |
| 25mATPM12 |
25 |
3/4 |
21 |
27 |
60 |
| 25mATPM16 |
25 |
1 |
25 |
36 |
65 |
IMPERIAL RANGE |
Dimensions in inches |
|
| Part No. |
T o/d |
P |
M |
F |
H |
| 2ATPM2 |
1/8 |
1/8 |
.38 |
1/2 |
1-1/8 |
| 2ATPM4 |
1/8 |
1/4 |
.56 |
9/16 |
1-5/16 |
| 4ATPM2 |
1/4 |
1/8 |
.38 |
7/16 |
1-7/32 |
| 4ATPM4 |
1/4 |
1/4 |
.56 |
9/16 |
1-13/32 |
| 4ATPM6 |
1/4 |
3/8 |
.56 |
9/16 |
1-7/16 |
| 4ATPM8 |
1/4 |
1/2 |
.75 |
15/16 |
1-21/32 |
| 5ATPM4 |
5/16 |
1/4 |
.56 |
9/16 |
1-15/32 |
| 5ATPM6 |
5/16 |
3/8 |
.56 |
11/16 |
1-15/32 |
| 6ATPM4 |
3/8 |
1/4 |
.56 |
9/16 |
1-1/2 |
| 6ATPM6 |
3/8 |
3/8 |
.56 |
11/16 |
1-1/2 |
| 6ATPM8 |
3/8 |
1/2 |
.75 |
15/16 |
1-11/16 |
| 8ATPM4 |
1/2 |
1/4 |
.56 |
1/2 |
1-11/16 |
| 8ATPM6 |
1/2 |
3/8 |
.56 |
11/16 |
1-3/4 |
| 8ATPM8 |
1/2 |
1/2 |
.75 |
15/16 |
1-15/16 |
| 10ATPM6 |
5/8 |
3/8 |
.56 |
11/16 |
1-13/16 |
| 10ATPM8 |
5/8 |
1/2 |
.75 |
15/16 |
2 |
| 10ATPM12 |
5/8 |
3/4 |
.75 |
1-1/16 |
2-1/32 |
| 12ATPM8 |
3/4 |
1/2 |
.75 |
15/16 |
2 |
| 12ATPM12 |
3/4 |
3/4 |
.75 |
1-1/16 |
2-1/32 |
| 12ATPM16 |
3/4 |
1 |
.94 |
1-3/8 |
2-9/32 |
| 16ATPM12 |
1 |
3/4 |
.75 |
1-1/16 |
2-9/32 |
| 16ATPM16 |
1 |
1 |
.94 |
1-3/8 |
2-9/16 |
