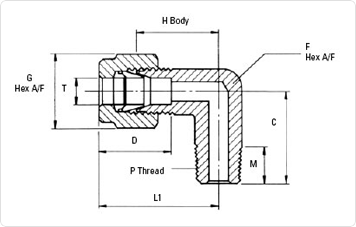

MALE ELBOWS
|
|||||||||||||
| Part No. | T o/d | P | L1 Length | M | C | D | F | G Nut | H Body |
||||
| 6mME2 | 6 | 1/8 | 29 | 10 | 20 | 17 | 12 | 14 | 20 | ||||
| 6mME4 | 6 | 1/4 | 29 | 15 | 26 | 17 | 12 | 14 | 20 | ||||
| 6mME6 | 6 | 3/8 | 33 | 16 | 28.5 | 17 | 14 | 14 | 24 | ||||
| 6mME8 | 6 | 1/2 | 32 | 20 | 32.5 | 17 | 19 | 14 | 23 | ||||
| 8mME2 | 8 | 1/8 | 32 | 10 | 23 | 18 | 14 | 17 | 23 | ||||
| 8mME4 | 8 | 1/4 | 32 | 15 | 27 | 18 | 14 | 17 | 23 | ||||
| 8mME6 | 8 | 3/8 | 33 | 16 | 28.5 | 18 | 14 | 17 | 24 | ||||
| 8mME8 | 8 | 1/2 | 33 | 20 | 32.5 | 18 | 19 | 17 | 24 | ||||
| 10mME2 | 10 | 1/8 | 31.5 | 10 | 23 | 18 | 14 | 19 | 23 | ||||
| 10mME4 | 10 | 1/4 | 31.5 | 15 | 27 | 18 | 14 | 19 | 23 | ||||
| 10mME6 | 10 | 3/8 | 32.5 | 16 | 28.5 | 18 | 14 | 19 | 24 | ||||
| 10mME8 | 10 | 1/2 | 33.5 | 20 | 32.5 | 18 | 14 | 19 | 25 | ||||
| 12mME4 | 12 | 1/4 | 36 | 15 | 28 | 24 | 19 | 22 | 25 | ||||
| 12mME6 | 12 | 3/8 | 36 | 16 | 29 | 24 | 19 | 22 | 25 | ||||
| 12mME8 | 12 | 1/2 | 36 | 20 | 32.5 | 24 | 19 | 22 | 25 | ||||
| 16mME6 | 16 | 3/8 | 39 | 16 | 391 | 26 | 24 | 27 | 27 | ||||
| 16mME8 | 16 | 1/2 | 39 | 20 | 34.5 | 26 | 24 | 27 | 27 | ||||
| 18mME8 | 18 | 1/2 | 41.5 | 20 | 36.5 | 26 | 27 | 30 | 29.5 | ||||
| 18mME12 | 18 | 3/4 | 41.5 | 21 | 36.5 | 26 | 27 | 30 | 29.5 | ||||
| 25mME12 | 25 | 3/4 | 50.5 | 21 | 40.5 | 36 | 32 | 41 | 34 | ||||
| 25mME16 | 25 | 1 | 50.5 | 25 | 44.5 | 36 | 32 | 41 | 34 | ||||
|
|||||||||||||
| Part No. | T o/d | P | L1 Length | M | C | D | F | G Nut | H Body |
||||
| 2ME2 | 1/8 | 1/8 | .94 | .38 | .76 | .53 | .47 | 5/16 | .72 | ||||
| 2ME4 | 1/8 | 1/4 | .97 | .56 | .94 | .53 | .47 | 5/16 | .72 | ||||
| 3ME2 | 3/16 | 1/8 | 1.01 | .38 | .76 | .54 | .47 | 1/2 | .75 | ||||
| 4ME2 | 1/4 | 1/8 | 1.07 | .38 | .76 | .60 | .47 | 9/16 | .78 | ||||
| 4ME4 | 1/4 | 1/4 | 1.07 | .56 | .94 | .60 | .47 | 9/16 | .78 | ||||
| 4ME6 | 1/4 | 3/8 | 1.17 | .75 | 1.00 | .60 | .55 | 9/16 | .84 | ||||
| 4ME8 | 1/4 | 1/2 | 1.26 | .38 | 1.26 | .60 | .75 | 9/16 | .91 | ||||
| 5ME2 | 5/16 | 1/8 | 1.17 | .56 | .82 | .64 | .55 | 5/8 | .88 | ||||
| 5ME4 | 5/16 | 1/4 | 1.17 | .38 | 1.00 | .64 | .55 | 5/8 | .88 | ||||
| 6ME2 | 3/8 | 1/8 | 1.20 | .56 | .82 | .66 | .55 | 11/16 | .91 | ||||
| 6ME4 | 38 | 1/4 | 1.20 | .56 | 1.00 | .66 | .55 | 11/16 | .91 | ||||
| 6ME6 | 3/8 | 3/8 | 1.23 | .75 | 1.00 | .66 | .55 | 11/16 | .91 | ||||
| 6ME8 | 3/8 | 1/2 | 1.32 | .75 | 1.26 | .66 | .75 | 11/16 | .98 | ||||
| 8ME4 | 1/2 | 1/4 | 1.38 | .56 | 1.08 | .91 | .75 | 7/8 | .98 | ||||
| 8ME6 | 1/2 | 3/8 | 1.38 | .56 | 1.08 | .91 | .75 | 7/8 | .98 | ||||
| 8ME8 | 1/2 | 1/2 | 1.44 | .75 | 1.26 | .91 | .75 | 7/8 | .98 | ||||
| 10ME6 | 5/8 | 3/8 | 1.46 | .56 | 1.16 | .96 | .94 | 1 | 1.06 | ||||
| 10ME8 | 5/8 | 1/2 | 1.46 | .75 | 1.34 | .96 | .94 | 1 | 1.06 | ||||
| 12ME8 | 3/4 | 1/2 | 1.51 | .75 | 1.39 | .96 | 1.06 | 1 1/8 | 1.11 | ||||
| 12ME12 | 3/4 | 3/4 | 1.51 | .75 | 1.39 | .96 | 1.06 | 1 1/8 | 1.11 | ||||
| 16ME12 | 1 | 3/4 | 1.79 | .94 | 1.66 | 1.23 | 1.25 | 1 1/2 | 1.31 | ||||
| 16ME16 | 1 | 1 | 1.79 | .94 | 1.84 | 1.23 | 1.25 | 1 1/2 | 1.31 | ||||
