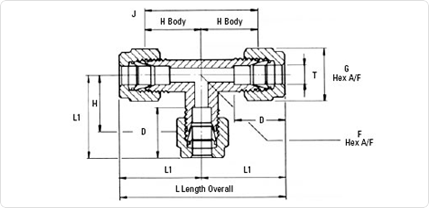

UNION TEES

pic1

METRIC RANGE

Dimensions in mm

Part No. T o/d L1
Length
D F G Nut J H Body H Body
6mTTT 6 28.5 17 12 14 19.5 39 57
8mTTT 8 31 18 14 17 22 44 62
10mTTT 10 33.5 18 19 19 25 50 67
12mTTT 12 36 24 19 22 25 50 72
16mTTT 16 39 26 24 27 27 54 78
18mTTT 18 41.5 26 27 30 29.5 59 83
20mTTT 20 39 24 27 32 29.5 59 78
25mTTT 25 50 36 32 41 33.5 67 100

IMPERIAL RANGE

Dimensions in inches

Part No. T o/d L1
Length
D F G Nut H Nut J L
2TTT 1/8 .99 .50 .47 7/16 .72 1.44 1.98
3TTT 3/16 1.01 .54 .47 1/2 .75 1.50 2.02
4TTT 1/4 1.07 .60 .47 9/16 .78 1.56 2.25
5TTT 5/16 1.17 .64 .55 5/8 .88 1.76 2.34
6TTT 3/8 1.20 .66 .55 11/16 .91 1.82 2.40
8TTT 1/2 1.38 .90 .75 7/8 .98 1.96 2.76
10TTT 5/8 1.46 .96 .94 1 1.06 2.12 2.92
12TTT 3/4 1.51 .96 1.06 1-1/8 1.11 2.22 3.02
16TTT 1 1.79 1.3 1.25 1-1/2 1.31 2.62 3.58
