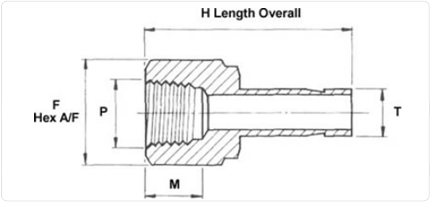

Female Adaptors
|
|
METRIC RANGE |
Dimensions in mm |
|
| Part No. |
T o/d |
P |
M |
F |
H |
| 6mATPF2 |
6 |
1/8 |
10 |
14 |
31 |
| 6mATPF4 |
6 |
1/4 |
14 |
19 |
35 |
| 8mATPF4 |
8 |
1/4 |
14 |
19 |
36 |
| 8mATPF6 |
8 |
3/8 |
14 |
22 |
36 |
| 8mATPF8 |
8 |
1/2 |
22 |
27 |
44 |
| 10mATPF6 |
10 |
3/8 |
14 |
22 |
37 |
| 10mATPF8 |
10 |
1/2 |
22 |
27 |
46 |
| 12mATPF6 |
12 |
3/8 |
14 |
22 |
42 |
| 12mATPF8 |
12 |
1/2 |
22 |
27 |
50 |
| 16mATPF6 |
16 |
3/8 |
14 |
22 |
45 |
| 16mATPF8 |
16 |
1/2 |
22 |
27 |
52 |
| 18mATPF8 |
18 |
1/2 |
22 |
27 |
53 |
| 18mATPF12 |
18 |
3/4 |
22 |
36 |
53 |
|
IMPERIAL RANGE |
Dimensions in Inches |
|
| Part No. |
T o/d |
P |
M |
F |
H |
| 2ATPF2 |
1/8 |
1/8 |
.39 |
9/16 |
1-5/32 |
| 4ATPF2 |
1/4 |
1/4 |
.39 |
9/16 |
1-5/32 |
| 4ATPF4 |
1/4 |
1/4 |
.59 |
3/4 |
1-11/32 |
| 5ATPF4 |
5/16 |
1/4 |
.59 |
3/4 |
1-7/16 |
| 5ATPF6 |
5/16 |
3/8 |
.59 |
7/8 |
1-17/32 |
| 6ATPF4 |
3/8 |
1/4 |
.59 |
3/4 |
1-13/32 |
| 6ATPF6 |
3/8 |
3/8 |
.59 |
7/8 |
1-15/32 |
| 6ATPF8 |
3/8 |
1/2 |
.78 |
1-1/16 |
1-21/32 |
| 8ATPF4 |
1/2 |
1/4 |
.59 |
13/16 |
1-5/8 |
| 8ATPF6 |
1/2 |
3/8 |
.59 |
7/8 |
1-11/16 |
| 8ATPF8 |
1/2 |
1/2 |
.78 |
1-1/16 |
1-7/8 |
| 12ATPF8 |
3/4 |
1/2 |
.78 |
1-1/16 |
2 |
| 12ATPF12 |
3/4 |
3/4 |
.81 |
1-5/16 |
2-1/16 |
