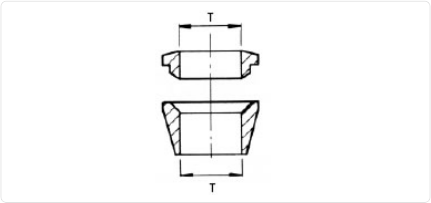

FERRULES

pic1

METRIC RANGE

Dimensions in mm

Back Ferrule Part No. T o/d Front Ferrule Part No.
6mRC 6 6mFC
8mRC 8 8mFC
10mRC 10 10mFC
12mRC 12 12mFC
16mRC 16 16mFC
18mRC 18 18mFC
25mRC 25 25mFC

IMPERIAL RANGE

Dimensions in inches

Back Ferrule Part No. T o/d Front Ferrule
2RC 1/8 2FC
3RC 3/16 3FC
4RC 1/4 4FC
5RC 5/16 5FC
6RC 3/8 6FC
8RC 1/2 8FC
10RC 5/8 10FC
12RC 3/4 12FC
16RC 1 16FC
