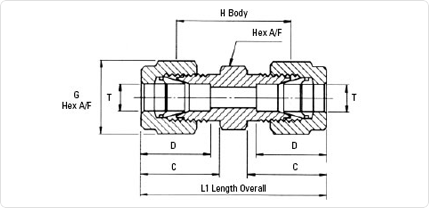

EQUAL UNIONS

pic1

METRIC RANGE

Dimensions in mm

Part No. T o/d L1 Length C D F G
Nut
H Body
6mU 6 44 19 17 14 14 26
8mU 8 46 20 18 14 17 28
10mU 10 49 20.5 18 17 19 30
12mU 12 54 23 24 22 22 32
16mU 16 56 24 26 24 27 32
18mU 18 58 24 26 27 30 34
25mU 25 72 31 .36 36 41 39

IMPERIAL RANGE

Dimensions in inches

Part No. T o/d L1 Length C D F G
Nut
H
Body
2U 1/8 1.44 .63 .53 1/2 7/16 .88
3U 3/16 1.47 .63 .54 1/2 1/2 .95
4U 1/4 1.61 .70 .60 1/2 9/16 1.03
5U 5/6 1.68 .73 .64 9/16 5/8 1.10
6U 3/8 1.77 .76 .66 5/8 11/16 1.19
8U 1/2 2.02 .86 .90 13/16 7/8 1.22
10U 5/8 2.05 .86 .96 15/16 1 1.25
12U 3/4 2.11 .86 .96 1-1/16 1-1/8 1.31
16U 1 2.55 1.04 1.23 1-3/8 1-1/2 1.59
